Single Phase Solar Inverter PAE-EVO Series 1.2KVA
- Built-in 60A Solar Charger
- PV Input Voltage Range 18-125V
- Pure Sine Wave
- LCD Display
- Support Lithium/Lead-acid Battery
- Lithium Battery Ac tivation
- Power Factor 1.0
- Detachabl e Dust Cover
Description
Powerage
Single Phase Solar Inverter PAE-EVO Series 1.2KVA
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
0%
WHAT'S IN IT FOR YOU
Eames Lounge
Chair & Ottoman
Amet nibh vel tristique dui id ridiculus ligula scelerisque faucibus platea a est imperdiet parturient aliquam taciti parturient odio a mi auctor rhoncus nec sociis natoque dui. Urna lacinia condimentum mi inceptos.

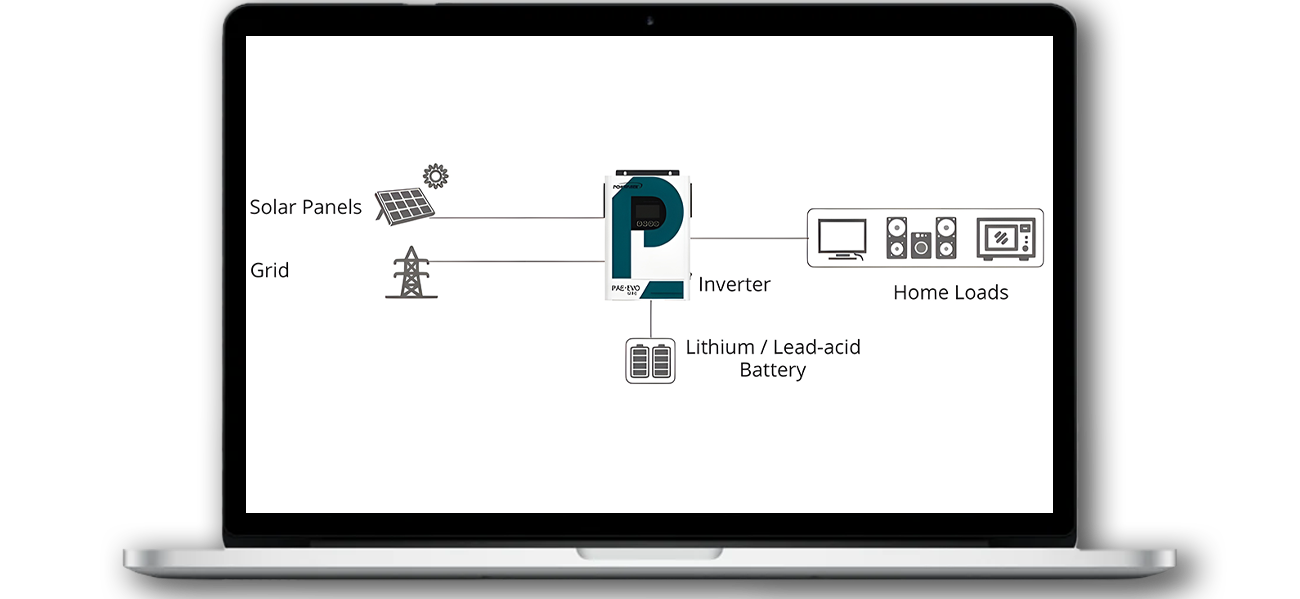

System Topology
Built-in 60A
Solar Charger
PV Input Voltage
Range 18-125V
Pure Sine Wave
Lithium Battery Activation
Detachabe Dust Cover
System Architecture
Specifications
|
PV1000-12 |
|
|---|---|
|
AC Input & Output |
208 / 220 / 230 / 240Vac; 50/60Hz; L + N + PE |
|
nput Voltage Range (V) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
Nominal Capacity (kW) |
1.2 |
|
Power Factor (PF) |
1 |
|
Switch Time (ms) |
10 (normal mode) / 10 (UPS mode) |
|
Wave Form |
Pure Sine Wave |
|
Solar Charger Type |
MPPT |
|
Max PV input current / power |
14A / 1000W |
|
MPPT Range@Operating Voltage (V) |
20~100 |
|
Max PV Open Circuit Voltage (V) |
125 |
|
Max. Charge Current (PV + AC) (A) |
100 |
|
Battery Voltage (V) |
12 |
|
Battery Type |
Lithium and Lead-acid |
|
Ingress Protection |
IP21 |
|
Operating Temperature |
-10℃~ 50℃ |
